Description

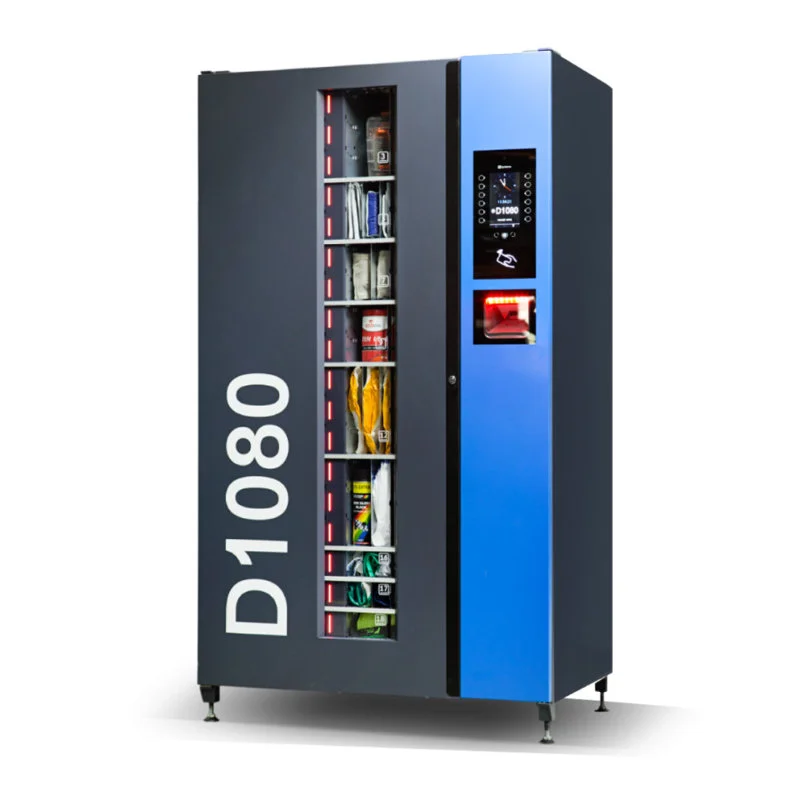

Based on the principle of a rotary drum, it allows the storage of a very large number of items in a small space. Intuitive operation is ensured by a panel with 15 touch-sensitive buttons. Thanks to the patented compartment scanning system, product loading is simple and fast. The D1080 machine can be connected to a barcode reader as well as to an auxiliary machine without a user panel.

Compartment Adjustment Function and 3 Loading Versions

The impressive loading capacity of the device is achieved thanks to the function of adjusting compartments
in width and height, across 9 configurations.
The shelves can vary in size.
Easy reconfiguration allows the machine’s capacity to be adapted each time to current operational needs.

Version 1	Version 2	Version 3
In the first version, loading takes place through the open door. This is the ideal solution for replenishing large quantities of products.	The second option is recommended for various types of items, loaded through flaps located in the machine door.	The third option is recommended for various types of items, loaded through flaps located in the machine door.

Additional assortment

Dedicated Lock with a Single Universal Key

A pin lock from the renowned company Baton allows multiple machines to be opened with a single key,
effectively protecting against opening with a generic master key.
The lock is made of high-quality steel.

Barcode Scanner

The barcode scanner enables identification of even heavily damaged codes thanks to decoding enhancement software.
This high-quality, multi-line (18 scanning lines) laser scanner is designed for vertical operation.
It is intended for built-in installation and is ideal for identifying both loaded products and those dispensed by vending machines.

Protective Tubes

Protective tubes create a barrier that shields the sides of vending machines from impacts with forklifts and other vehicles in warehouse halls.
The durable steel construction ensures reliable protection.
The tubes are mounted to the sides of the machines in pre-prepared technological openings using screws.
The structure is powder-coated in bright colors or customized according to individual needs.

Wi-Fi Modem

Wherever LAN cabling cannot be easily installed, the machine can be connected to the local network via a Wi-Fi interface.

Extended Warranty

The extended warranty offer allows coverage to be extended for up to 6 years (for the same parts).
The all-inclusive option covers repairs by authorized service technicians with a guaranteed response time of up to 24 hours.

Technical Specifications

TECHNICAL SPECIFICATIONS

Technical specifications

Height [mm]

1915

Width [mm]

1110

Depth [mm]

1092

CAPACITY [COMPARTMENTS / SHELVES OF ONE TYPE]

240 × 160 mm

120

160 × 160 mm

180

240 × 80 mm

240

240 × 53 mm or 160 × 80 mm or 80 × 160 mm

360

160 × 53 mm

540

80 × 80 mm

720

53 × 80 mm

1080

OTHER

Operating temperature [°C]

5 – 40

Weight [kg]

750

Power consumption [W]

standby: 15 / dispensing: 100

Voltage [V]

230 / 1 A

Permissible load with basic drum configuration [kg]

185

DIMENSIONS IN MM

NUMBER OF COMPARTMENTS	A	B	C	D
1080	80	53	437	7
720	80	80	437	11
360	80	160	437	23
540	170	53	437	7
360	170	80	437	11
180	170	160	437	23
360	260	53	437	7
240	260	80	437	11
120	260	160	437	23
