Description

It is possible to install up to 8 shelves, each equipped with 10 springs, which can be paired for larger products. The spring configuration is unlimited – a single shelf can hold both single and double springs of different sizes at the same time. Easy adjustment allows the machine’s capacity to be adapted each time to current operational needs.

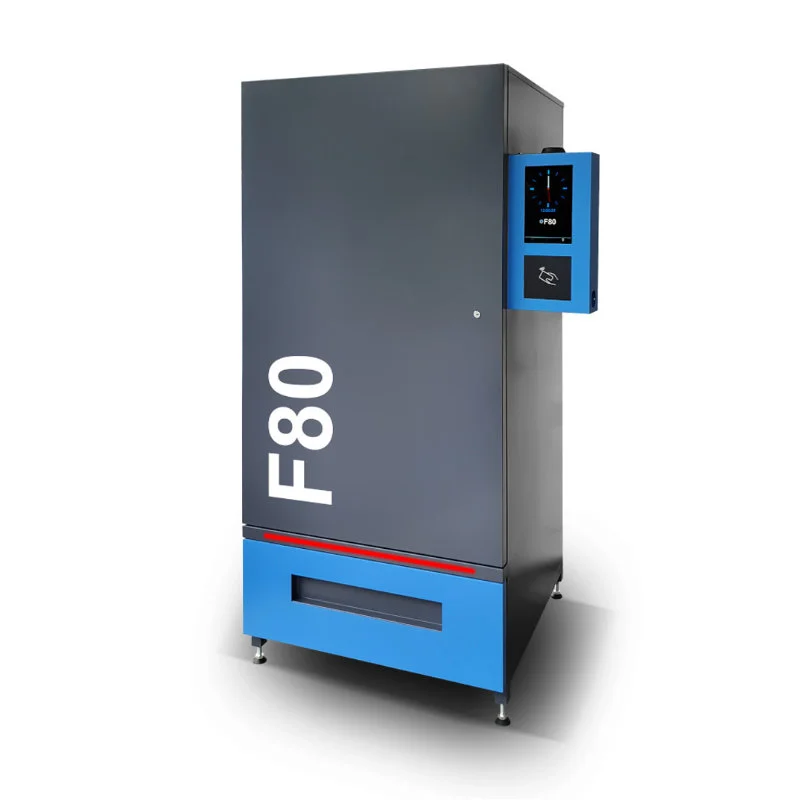

The F80 is a self-service machine that automatically dispenses up to 80 different types of products. Based on ejectors, it allows the storage of a very large number of products in a small area. Intuitive management is provided by a screen with 15 touch-sensitive buttons. Product loading is simple and fast. A barcode reader as well as an auxiliary machine without a user panel can be connected to the F80.

Additional assortment

Dedicated Lock with a Single Universal Key

A pin lock from the renowned company Baton allows multiple machines to be opened with a single key, effectively protecting against opening with a generic master key.
The lock is made of high-quality steel.

Barcode Scanner

The barcode scanner enables identification of even heavily damaged codes thanks to its enhanced decoding software.
It is a high-quality, multi-line (18 scanning lines) laser scanner, designed for vertical operation.
Intended for built-in installation, it is ideal for identifying both loaded products and those dispensed by vending machines.

Protective Tubes

Protective tubes create a barrier that shields the sides of vending machines from impacts with forklifts and other vehicles in warehouse halls.
The durable steel construction ensures effective protection.
The tubes are mounted to the sides of the machines in pre-prepared technological openings using screws.
The structure is powder-coated in bright colors or customized according to individual needs.

Wi-Fi Modem

Wherever LAN cabling cannot be easily installed, the machine can be connected to the local network via a Wi-Fi interface.

Extended Warranty

The extended warranty offer makes it possible to prolong coverage for up to 6 years (for parts only).
The all-inclusive option covers machine repairs carried out by authorized service technicians with a guaranteed response time of up to 24 hours.

Technical specifications

Technical Specifications

TECHNICAL SPECIFICATIONS
Height [mm]	1915
Width [mm]	900
Depth [mm]	895
CAPACITY [SPRINGS OF ONE TYPE]
9		720
12		960
15		1200
18		1440
24		1920
OTHER
Operating temperature [°C]	5 – 40
Weight [kg]	350
Power consumption [Watt]	standby: 12 / dispensing: 25
Voltage [V]	230 / 1 A
Permissible load [kg]	25
DIMENSIONS
Dimensions	Types of springs	Spring capacity
Space for technical drawing.	left, right	9
	left, right	12
	left, right	15
	left, right	18
	left, right	24
